Complete Carbon Fiber Lines

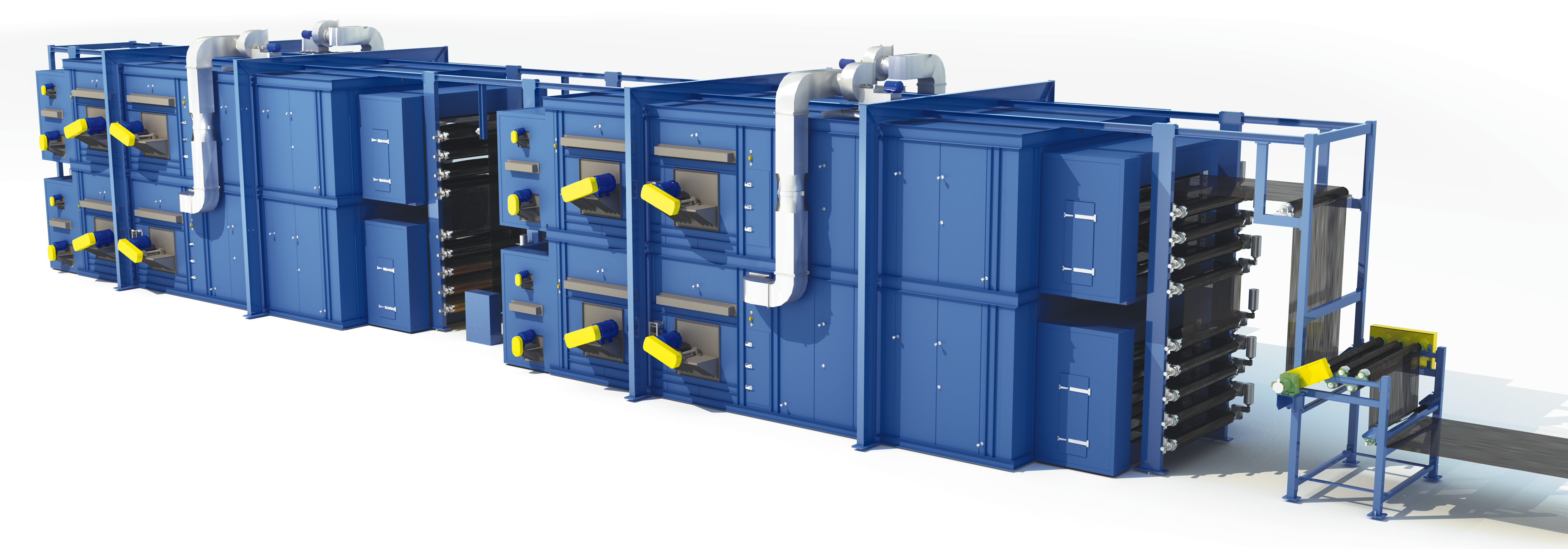

CarbonFiberCompleteLine_Final
A complete Carbon Fiber Line is one of the largest fiber processing machines in the world. At Litzler we focus on the machines that we make best, and coordinate with the customer to develop a complete line. In this way, Litzler helps you grow your fiber business with practical engineering solutions.

Litzler provides Oxidation Ovens, the Patented G5 End-Seal, Tow Handling Equipment, Sizing Systems/Dryers, Automation and much more for multiple fiber applications:

  • Industrial
  • Aerospace
  • Recreation
  • Automotive

Litzler Carbon Fiber Oxidation Oven

Custom Carbon Fiber Oxidation Ovens

Litzler makes custom Oxidation Ovens of every size and airflow style for continuous processing.

Litzler Oxidation Ovens are in production around the world using proven Cross-Flow technology and our Patented End-Seal System. Litzler Cross-Flow Ovens are successfully processing 1k up to 480k tow. We also offer: Cross-Flow, Parallel-Flow and Down-Flow airflow styles for various applications.

Each Litzler Oxidation Oven includes the Patented End-Seal system. Litzler was the first company in the world to develop a practical End-Seal, with the first unit installed in 1995. The fifth generation End-Seal (G5) is now in operation.

  • Uniform airflow, temperature and pressure
  • Patented Litzler End-Seal chamber to eliminate the trapezoidal chamber in other designs
  • 8” (200mm) thick insulation for safety and energy efficiency
  • Proven and tested air supply and return nozzle configurations
  • Electric and indirect gas heating
  • Heat recovery for energy efficiency
  • Modular and field construction designs available
  • Seal-welded designs manage heat expansion
  • Pilot and production systems are completely scalable
  • Monitoring Systems
  • Water Suppression System with stainless drain system
  • Coordination with pollution control



Litzler Automation for Complete Carbon Fiber Lines

Litzler Automation offers automation solutions for Complete Carbon Fiber Lines or system upgrades tailored to each application. The control system integrates all the components together for a complete control system.

Litzler Automation for Complete Carbon Fiber Lines Includes:

  • Complete integration for all components
    • Creel
    • Roll Stands
    • Oxidation Ovens
    • Furnaces
    • Tension Stands
    • Surface Treating
    • Sizing/Drying
    • Pollution Control
    • Winders
  • PLC/HMI programming based on stringent internal specifications
  • AC Vector drive systems
  • Data acquisition and database management
  • Recipe storage and management
  • Litzler Automation staff travels the world for commissioning and long-term support
  • Safe, remote access monitoring via secure data lines
  • Redundant PLCs/Hot backup is available
  • UPS backup is available
  • Multiple security levels for operators through process engineers to safeguard product quality
